In the back of the FoilMount installation guide there is a list of poor/fair adhesion materials. Polyethylene and polypropylene are a few of these materials and can be common on wakeboard and kiteboard bottom surfaces. If you're using a FoilMount with a board that has a bottom made from a material on the fair adhesion list make sure to use this 3M primer to prepare the surface prior to sticking down the FoilMount
This adhesion promoter can be used in a wide variety of applications. It is developed to be used in conjunction with 3M VHB tapes to increase the bonding strength of the tape. It is a popular tool to assist in applying automotive vinyl wraps. It increases the bond between vinyl wraps and nearly anything where a strong, durable bond is required. This product can be used to promote adhesion of 3M tapes to surfaces such polyethylene, polypropylene, ABS, PET/PBT blends, concrete, wood, glass, metal and painted metal surfaces.
Foil Fish Board Mounting Bolts
The 2015/2016 Liquid Force Foil Fish board used a through bolt connection that used T-nuts on the base plate side and a counter sunk M8 bolt on the board size. This is a different connection from all other hydrofoil board. This product is a special set of 4 counter sunk stainless M8 bolts with washers and lock nuts that are used to connect the Foil Fish board to All baseplates and hydrofoils outside the 2015/2016 stock Foil Fish.
This means if you get the Liquid Force Interface plate you will need to get this set of bolts to use the Slingshot base plate and Mast on your Foil Fish board. You DO NOT need these if you are using the Rocket Foil Board or the Happy Pill board from Liquid Force (or any other board for that matter).
Includes: Set of 4x 60mm M8 Bolts Set of 4x Stainless Washers Set of 4x M8 Lock Washers
FoilMount Removal Tool System Including both parts
This is the only way to completely remove a FoilMount from a board or other surface with out damage to the mounted surface. It is a fairly quick and easy procedure consisting of two steps.
Step 1: Use the included water chisel with you garden hose to cut through the foam between the FoilMount and the board or mounted surface. Step 2: Use the included rotary eraser with a corded or cordless drill to get all residual adhesive remaining on the surface.
Below are the two instructional videos for this process.
FoilMount Ridge Mount
The FoilMount is a universal hydrofoil mounting system, this means that you can put a hydrofoil track on just about any board you already have. Just Stick and Ride!
The FoilMount uses a specially designed 3M adhesive tape to stick to the bottom of your board. It will accommodate any foil that uses the 90mm track system (this is industry standard). It is a easy way to fix a broken track system. It is also great for retrofitting boards with through bolt holes to give them the adjust-ability of a sliding track system. The FoilMount can be removed but cannot be reused. It is very easy to install, just prep the surface with alcohol, peel the backing on the tape, and stick onto the desired location.
Ridge Mount FoilMount This is the standard mount with a relief cut down the middle allowing for a mount on top of a ridge on the bottom of the board. The surface still needs to fairly flat, but allows for a slight ridge where the FoilMount will be installed. It is suitable for most SUP boards, hydrofoil boards, Skim boards, Surfboards. If you have any questions about mounting compatibility email us at firstname.lastname@example.org.
The 2.0 Standard now includes: -Upgraded FoilMount plate with one piece adhesive backing -4 high strength brass slider nuts -1 set of 4 flat head M8x16mm bolts for Slingshot, Liquid Force, Cabrinha, and most other hydrofoils. -1 set of 4 flat head M6x12mm bolts for Takuma Surf hydrofoils -1 set of 4 pan head M8x20mm bolts for Moses and older Liquid Force foils (instructions, alcohol pads, scotch-brite pad, FoilMount plate)
The FoilMount is a universal hydrofoil mounting system, this means that you can put a hydrofoil track on just about any board you already have.
The FoilMount uses a specially designed 3M adhesive tape to stick to the bottom of your board. It will accommodate any foil that uses the 90mm track system (this is industry standard). It is a easy way to fix a broken track system. It is also great for retrofitting boards with through bolt holes to give them the adjust-ability of a sliding track system. The FoilMount can be removed but cannot be reused. It is very easy to install, just prep the surface with alcohol, peel the tape backing, and stick!
Standard FoilMount The standard mount is a flat plate that can be installed on any flat board surface. It is suitable for most SUP boards, hydrofoil boards, Skim boards, Surfboards. If you surface has some curve to it try the Ridge Mount system. If you're trying to outfit a board with a tuttle box system or a windsurfing rig try the Hole Mount system. If you have mounting questions you can reach us by emailing email@example.com
The 2.0 Standard now includes: -Upgraded FoilMount plate with one piece adhesive backing -4 high strength brass slider nuts -1 set of 4 flat head M8x16mm bolts for Slingshot and most other foils -1 set of 4 flat head M6x12mm bolts for Takuma Surf hydrofoils -1 set of 4 pan head M8x20mm bolts for Moses and older Liquid Force foils (instructions, alcohol pads, scotch-brite pad, FoilMount box)
Free Stickers! Limit 2 per customer and we will cover the shipping to all domestic addresses via USPS first class. Stickers are 3" x 3" and are printed on a UV resistant vinyl so perfect for outdoor use on vehicles, boards, hydrofoils, etc.
GoFoil Adapter Plate
**Adapters back IN-STOCK** We have Adapters in-stock and ARE shipping TODAY 16Apr18. Let us know if you have any questions.
Convert your GoFoil Deep Tuttle to a 4-bolt plate system with this adapter plate. Your GoFoil will tighten into this adapter and then can be used on ANY track mounted foilboard or FoilMount system.
Made from anodized and CNC high strength aluminum. It is just under 1.5lbs weight empty and uses counter sunk holes for the 4-bolt system so you won't have any bolt walking on you. When you want to use a deep tuttle box you can just remove the 2 retaining bolts and your tuttle is ready to be put into a deep tuttle box.
More information check out the info page here: https://foilmount.com/blogs/installation/gofoil-deep-tuttle-adapter-plate-for-4-bolt-plate
The adapter does now come with hardware including 2 qty M6x50mm flat head retaining bolts for use with the GoFoil system as well as 4 qty M8x16mm for mounting on the FoilMount.
Hydrofoil Mounting Bolts M8
These are extra stainless steel M8 bolts for your hydrofoil setup.
These are all countersunk flat head Stainless Metric Bolts in various sizes. We can tell you what size you need for most foil setups. The best way to do it is to measure the bolts you need from the ones that are already on your foil. Use the graphic below.
Hydrofoil Track Brass T-Nuts
Extra brass T-nuts for your tracked hydrofoil. These are salt water approved and perfect for all Liquid Force, Lift, Slingshot, FoilMount, etc track systems. They are M8 standard metric threads which is the convention for all hydrofoil tracks.
Liquid Force Short Mast Interface Plate
This Annodized Aluminum interface plate will allow you to use any of the Slingshot Flight School Masts with ANY standard Liquid Force Hydrofoil (Rocket Foil, Foil Fish, Happy Foil). It interfaces the bolt holes of the Liquid Force fuselage with the bolt holes on the Slingshot Masts.
You will need to buy or have the Slingshot Masts and an extra Slingshot base plate (your LF base plate will not work with Slingshot Masts).
Package includes the interface plate, 4qty M8x45mm bolts.

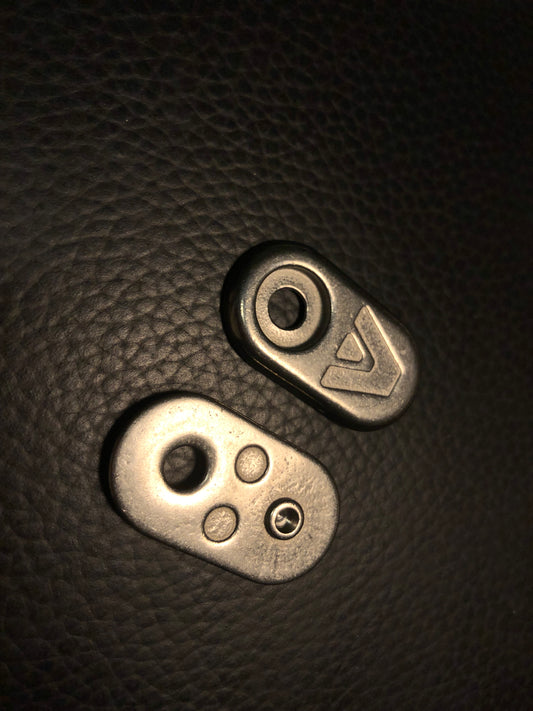

M6 Stainless Replacement T-nuts each
These are Replacement M6 Stainless Steel T-nuts for the any hydrofoil that uses the M6 T-nut including Takuma and Naish. These are hard to get replacements that we now have in stock. They are sold each so if you need a set of 4 make sure to buy 4 of them. Watch the video below for our testing of the M8 version against the brass version.

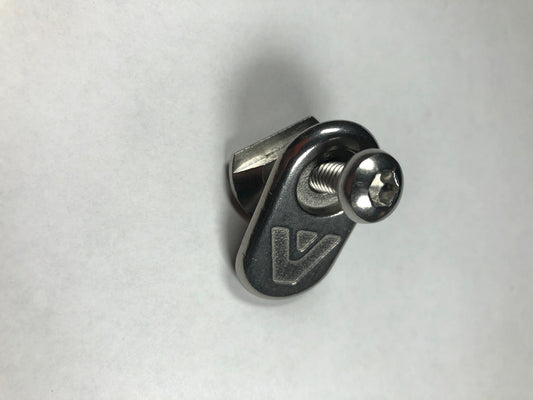

M8 Stainless Low Profile Raplacement T-nuts each
These are low profile replacement M8 Stainless Steel T-nuts for the any hydrofoil that uses the M8 T-nut, which just about all Tracked hydrofoils. These are low profile meaning they are thinner than stock brass T-nuts by about 2.2mm from top to bottom but STRONGER. See the video below for some of the testing including breaking T-nuts in slow motion.
These are also available in M6 on a separate product listing.
Slingshot Flight School Short Mast Set
Get the full meal deal with all three short mast sections in one package to save some money. We have all of these available individually as well, but this is a one stop shop to get them all. Masts include no hardware or base plate and will come with just the 3 cut mast sections. If you need extra hardware or a base plate tell us and we can add it to your order. FLIGHT SCHOOL HIGHLIGHTS
--Industry’s only learn-to-foil mast package --Start short, increase in length as your skills improve --Learn faster and safer than with a full-size mast --Great for shallow-water locations --Less frustration, more fun. FLIGHT SCHOOL CHARACTERISTICS
Foiling Flight School is an exclusive three-mast system that is compatible with Slingshot’s Hoverglide foil. Designed to take the pain, frustration and intimidation out of the learning process, Foiling Flight School allows newcomers to learn the basics with a shorter, more manageable mast and graduate in length as their skills progress. This is by far the best learn-to-foil system in kiteboarding. The concept is simple: You wouldn’t learn your very first kite skills on a full-sized kite, and now you don’t have to learn to foil on a full-sized mast.
+ 15” MAST + 24” MAST + 30” MAST
Slingshot Hydrofoil Mast Base Plate
Hoverglide Hydrofoil Mast Base Plate. This is an extra base plate for your hoverglide hydrofoil. If you get the flight school you will want one of these to make it easier to switch between your full length mast and your other length masts for shallow water or to teach your friends to foil.
You will need to buy a base plate to go with the flight school system if you're getting either the Lift or Liquid Force Interface Plates.
Takuma Surf Hydrofoil Package
Takuma Foils In-stock!: These foils are in and working great. They are compatible with the foilmount and ANY track board on the market even though they use M6 mounting bolts. The Takuma is one of the slowest foils on the market making a real winner for surf foiling, kite foiling in light wind, and windsurf foiling. We have been teaching all of lessons on these foils because it allows new riders to catch and ride the smallest waves possible.
TAKUMA V100 FOIL The easiest all round hydrofoil available on the market. The brand new Takuma V100 foil is made to enjoy the unique foil feeling with an appropriate choice for beginners, medium and advanced riders. With a foiling speed of 6mph you can get up and hydrofoil in small unbreaking waves or open ocean swell.
With massive stability and the best low speed the V100 is the easiest foil on the market. One allround hydrofoil to do everything! Surf, Sup, Wake and also wind sports like Kitesurf, Windsurf and Windsup. The foil concave and it?s compact shape is the best combination to fly easily and as early as possible.
The Mounting plate features an industry standard 90mm base plate spacing so it will work with the patent pending FoilMount universal hydrofoil mounting system as well as ALL hydrofoil track systems on the market. The foil package will include all mounting hardware and compatible M6 bolts and T-nuts.
60cm (red anodized) : All round mast for most of the water sports
FOIL PACK V100:
Anodized Mast aluminium 60cm
Front Carbon Wing (59cm x 26cm)
Fuselage anodized aluminium 65cm
Carbon stabilizer (38cm x 11cm)
Top plate 4 points board attachment into 2 US Boxes ( Universal size : 9cm x 16,5cm)
