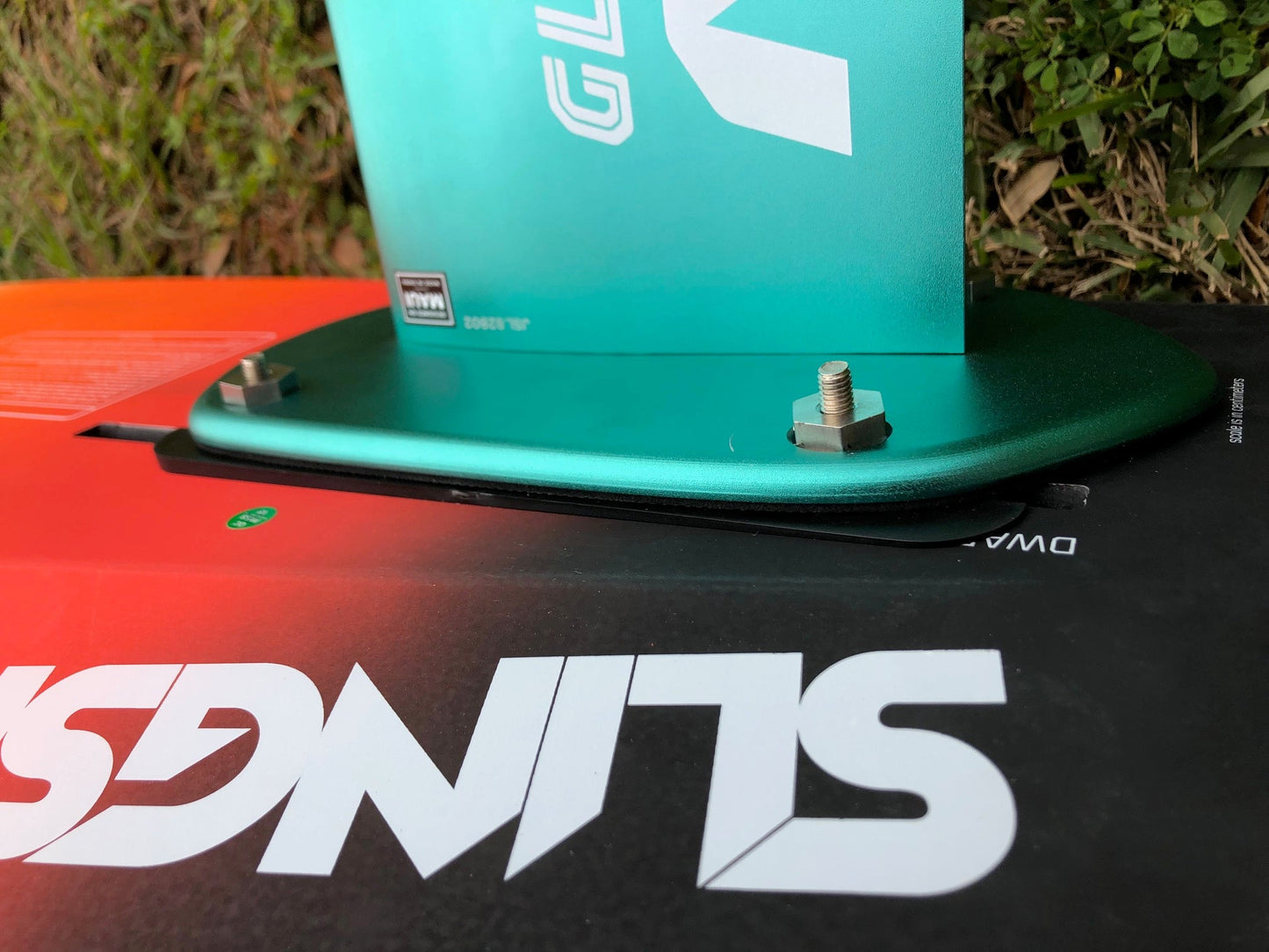

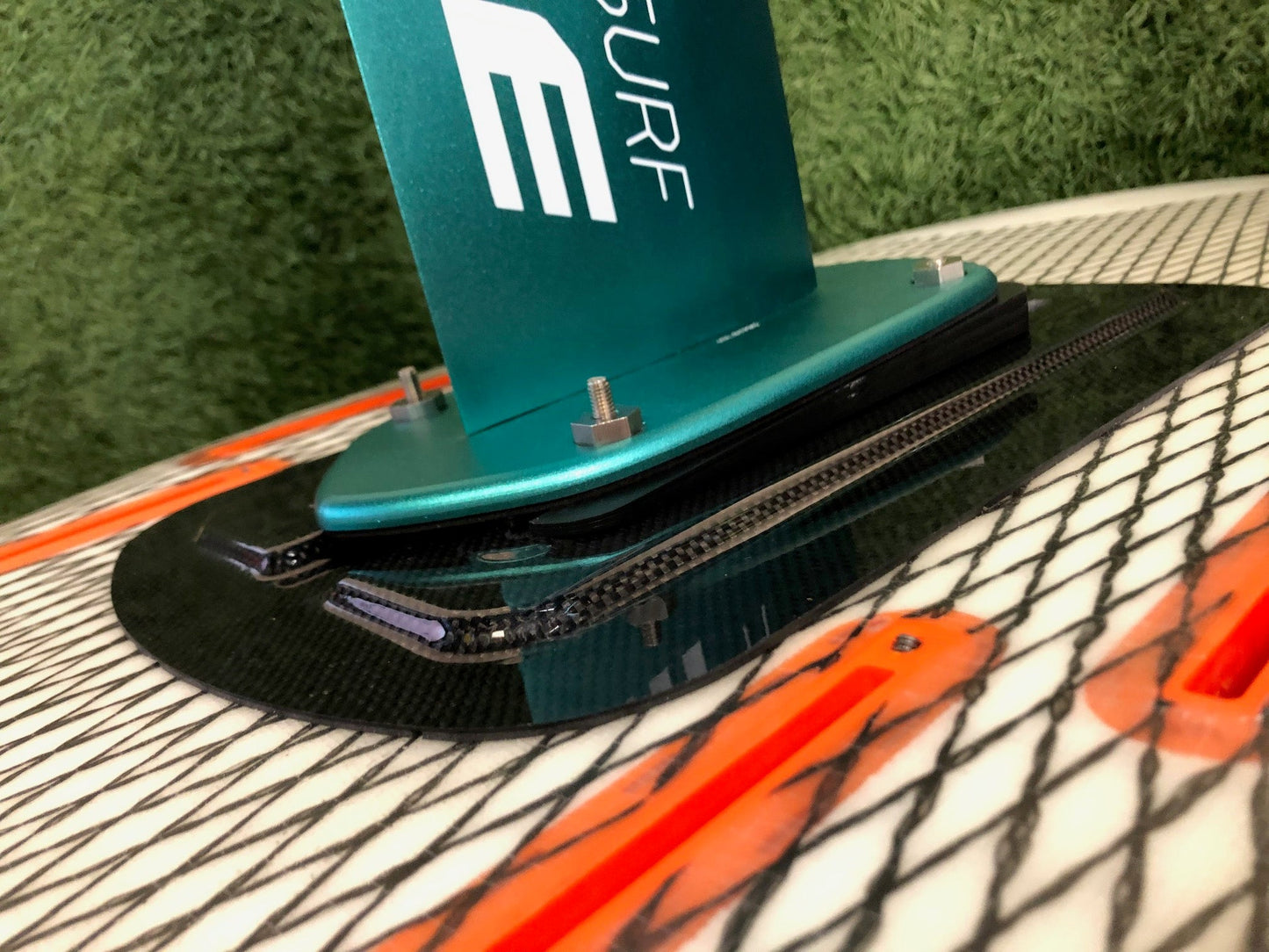

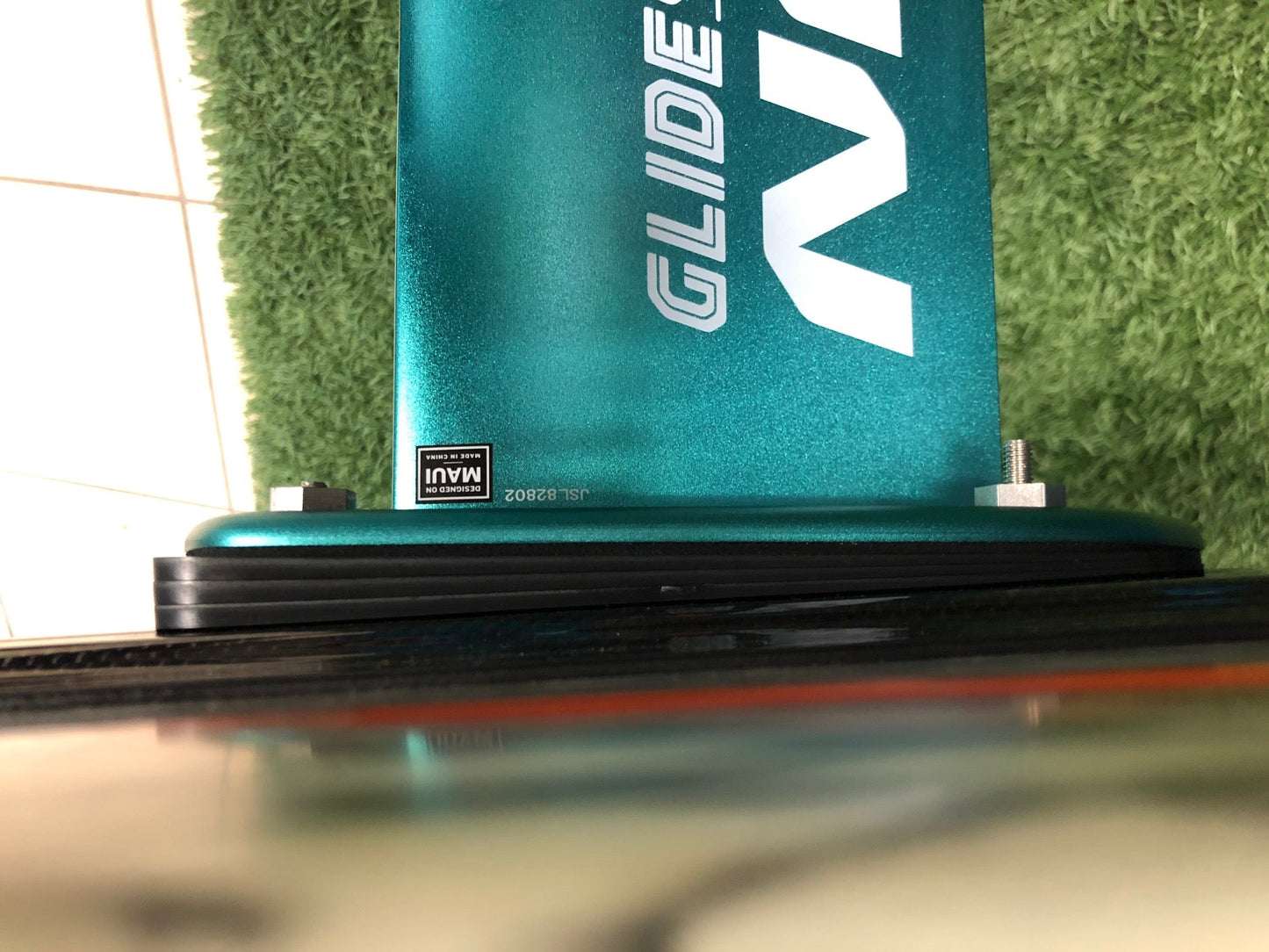

The TrimShim stack-able hydrofoil shim system comprises of a set of specially made abs shims that lock-in to one another creating a stack-able shim. Each shim in the kit is at a 1 degree slant and there are 3 shims in this kit for up to 3 degrees of adjustment. The kit also includes 4 sets of wizardhat hardware with its patent pending articulating pivot allowing for full contact with the board track even at up to 5 degree tilt. It is only recommended to use the Wizardhat hardware with the TrimShim system.
Why you would want to shim your base plate? The angle between your board and your fuselage is fixed due to the mounting or installation of the track in the board. There are different angles necessary for different foiling sports specifically for prone/SUP surf foiling, static foil pumping, and kite foiling. If you're trying to use a kitefoil board for prone surfing it maybe helpful to change this angle to more easily catch the wave. Also, changing the angle between the board and fuselage will help immensely while static pumping off a dock or out at sea. You guys asked for it and FoilMount built it!
What is in the kit: -3 sets of TrimShim shims each at 1 degree -4 sets of WizardHat hardware which will work on any board with a track and any base plate on the market -15mm ratchet wrench -2 qty 40mm T-bolts (not included in shims only) -Cool Foilmount and Wizardhat decal
**This Product DOES NOT work on the Moses Windsurf Fuselage**
Use any size Slingshot mast with your Moses setup. All Slingshot short masts 15", 24", 28", and full length 35.4" kite mast, will work with this system.
The aluminum anodized shim attaches to the Slingshot mast with 2 titanium M8 bolts. This system now interfaces directly with the shimmed Moses fuselage using two included M6 bolts. It will work with all Moses fuselages including Pre-2017 kite fuselage, 2017/2018 kite fuselage, and 2017/2018 surf fuselage. Each of these fuselages take a slightly different attachment bolt and all are included in this kit. It is not compatible with the windsurf fuselage.
What is included:
1 qty anodized aluminum adapter 2 qty titanium M8 socket head bolts 2 qty stainless steel flat head bolts for pre 2017 Moses kite fuselage 2 qty stainless steel socket head bolts for 2017/2018 Moses Kite fuselage 2 qty stainless steel socket head bolts for 2017/2018 Moses Surf fuselage
Slingshot Hydrofoil Mast
These are individual Mast sections for the Slingshot System to use on Slingshot hydrofoils or the Moses hydrofoils with the adapter.
GoFoil and Standard Deep Tuttle Drop-in Plate Adapter
This is a dual purpose adapter plate that will accommodate both the GoFoil Symmetrical deep tuttle and the standard Deep tuttle. The adapter includes "drop-in" fastening slots for easy in and out while working on any standard 90mm track system including the FoilMount. The two tuttle retaining holes are slotted and are large enough to fit M6 (GoFoil) or 1/4" (standard tuttle) bolts which will work on most systems.
This setup includes 1 adapter plate, 2 qty M6x50 Gofoil retaining bolts, 4 qty standard track mounting bolts, 4 qty M8x16mm FoilMount track mounting bolts, and 4 qty brass M8 T-nuts.
The height of the adapter is about 3” so if your tuttle goes all the way in, your mast will be functionally around 3" longer than slotting the tuttle into the board. The overall weight of the adapter is 1.4lbs.
This adapter works on standard deep tuttle foils as well as gofoil tuttle hydrofoils.
Wizardhat Universal Hardware Set
This hardware set will work with any base plate or 4-bolt tracked board on the market. This included M8 or M6 base plates and tracks. There is no more need for T-nuts or different sized bolts the Wizardhat will work on any. Also, the way the bolt sticks up through the track on top makes it easy to line up with the base plate.
The Wizardhat kit comes with a 15mm ratchet wrench, 4 qty Wizardhat hardware sets, and a decal.
Be careful not to over- tightening with the wrench as you will have a lot more leverage than the screwdrivers you have been using.
