New for 2023 is the full carbon, low profile FoilMount 3.0 Carbon.

This compressed carbon plate is not only beautiful it is also incredibly strong allowing it to be thinner than the original FoilMount.  This setup weighs just over 1lb so it is also about 30% lighter than previous models.  The new curved shape along with it's light weight and thinner profile make it incredibly low drag in the water.  You cannot tell there is a track mounted on the bottom of your board while using it without a hydrofoil.  We have also upgraded the included hardware.  Because this system is so thin we had to invent a new hardware set that would work with any base plate on the market call the Wizardhat Hardware.  Each FoilMount 3.0 Carbon includes a set of 4 Wizardhat hardware and they will allow you to attach any hydrofoil on the market to your FoilMount.

Features:
-New Carbon Fiber bulletproof construction
-CNC milled tracks and edges
-Bubble channels in adhesive to decrease bubbles while installing
-Flexible edges and center-line to accommodate more board geometry.
-New more efficient shape
-Lighter design weighs 30% less than FoilMount 2.0

Includes:
-FoilMount 3.0 Carbon plate with adhesive back
-Installation and preparation materials (Alcohol wipes, scotch-brite pad)
-4 sets of Wizardhat hardware (25mm T-bolts)
-Extra set of 4 x 35mm T-bolts for thicker base plates
-Instructions

Dimensions:
Track spacing: 90mm
Track length: 235mm (9.28in)
FoilMount Weight: 1.16lbs
Width of Mount 241mm (9.5")
Length of Mount 371mm (14.625")
Thickness in track area 9.25mm
Thickness at edge 2.6mm

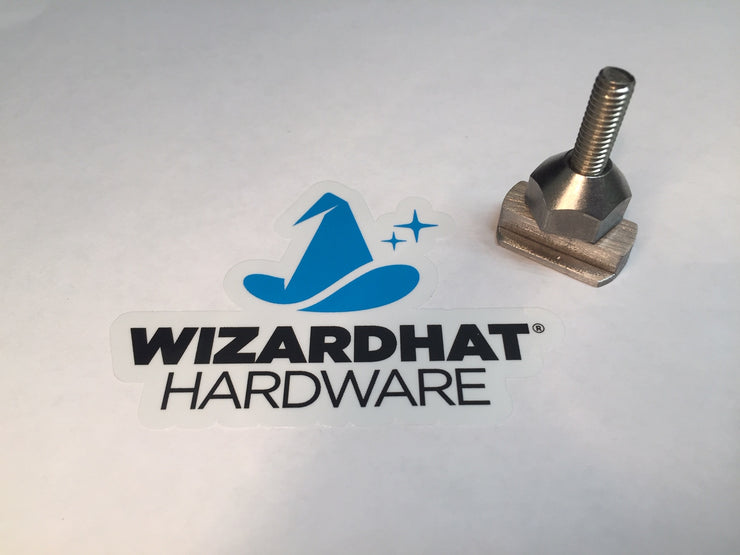

This hardware set will work with any base plate or 4-bolt tracked board on the market.  This included M8 or M6 base plates and tracks.  There is no more need for T-nuts or different sized bolts the Wizardhat will work on any.  Also, the way the bolt sticks up through the track on top makes it easy to line up with the base plate.

The complete Wizardhat kit comes with a 15mm ratchet wrench, 4 qty Wizardhat hardware sets, a set of 4 qty 30mm extra t-bolts, and a decal.  Choose from the standard length set at 35mm or the short version at 25mm.  The short 25mm version is for very low profile tracks like the FoilMount Carbon 3.0 or some of the F-One Wing boards.  For more options you can buy any length T-bolt you want from 25mm, 30mm, 35mm, and 40mm separately.

Be careful not to over- tightening with the wrench as you will have a lot more leverage than the screwdrivers you have been using.



This is a dual purpose adapter plate that will accommodate both the GoFoil Symmetrical deep tuttle and the standard Deep tuttle.  The adapter includes "drop-in" fastening slots for easy in and out while working on any standard 90mm track system including the FoilMount.  The two tuttle retaining holes are slotted and are large enough to fit M6 (GoFoil) or 1/4" (standard tuttle) bolts which will work on most systems.

This setup includes 1 adapter plate, 2 qty M6x50 Gofoil retaining bolts, 4 qty standard track mounting bolts, 4 qty M8x16mm FoilMount track mounting bolts, and 4 qty brass M8 T-nuts.

The height of the adapter is about 3” so if your tuttle goes all the way in, your mast will be functionally around 3" longer than slotting the tuttle into the board.  The overall weight of the adapter is 1.4lbs.

This adapter works on standard deep tuttle foils as well as gofoil tuttle hydrofoils.

 **This Product DOES NOT work on the Moses Windsurf Fuselage**

Use any size Slingshot mast with your Sabfoil setup.  All Slingshot short masts 15", 24", 28", and full length 35.4" kite mast, will work with this system.

The aluminum anodized shim attaches to the Slingshot mast with 2 titanium M8 bolts.  This system now interfaces directly with the shimmed Sabfoil fuselage using two included M6 bolts.  It will work with all Sabfoil and older Moses fuselages including Pre-2017 kite fuselage, 2017/2018 kite fuselage, and 2017/2018 surf fuselage.  Each of these fuselages take a slightly different attachment bolt and all are included in this kit.  It is not compatible with the windsurf fuselage.

What is included:

1 qty anodized aluminum adapter
2 qty titanium M8 socket head bolts
2 qty stainless steel socket head bolts for 2017/2018 Moses Kite fuselage
2 qty stainless steel socket head bolts for 2017/2018 Moses Surf fuselage

Very simple leash system for those of you who have a hard time trusting the FoilMount system.  To install loop the lasso end around the top of your hydrofoil near the base plate.  Next, tie the other end of the leash to the surf board leash attachment, foot strap, or other connection area.  Finally, once tied and cut excess leash line to prevent it from getting in the way.  Make sure to keep enough slack in the line to looses the lasso end to remove the foil each time you put it on the board.  Use the leash for the first few months or until you feel confident about your installation.

Kite includes:
- Directions
- 500lb strength Dyneema line with sewn loop
